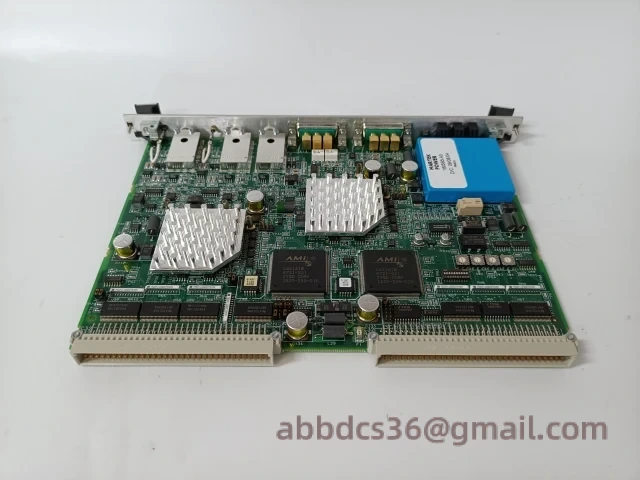

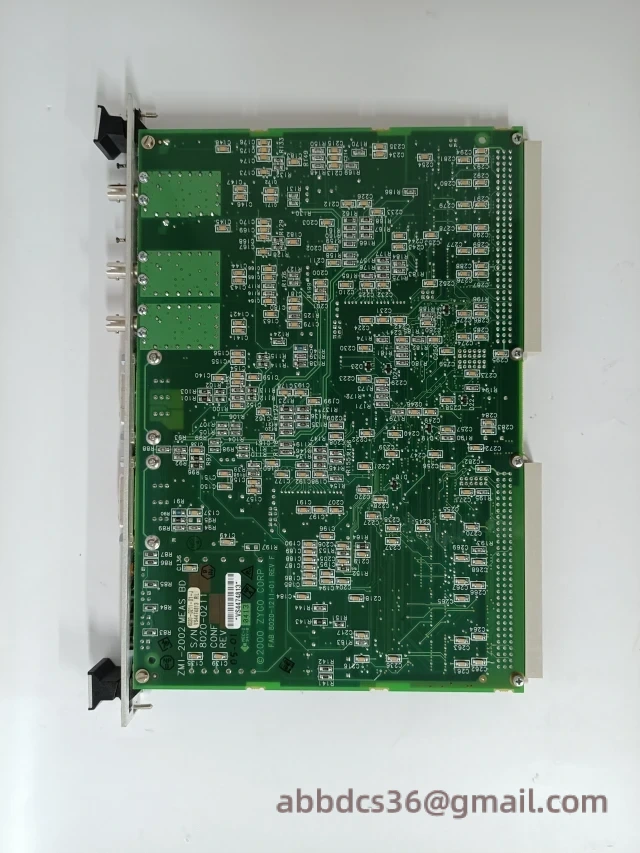

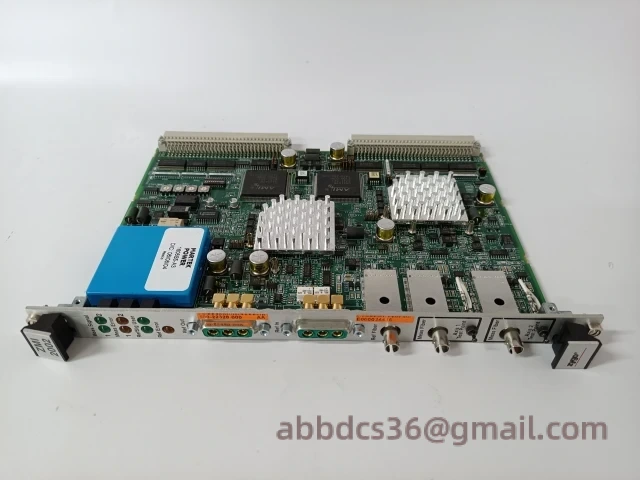

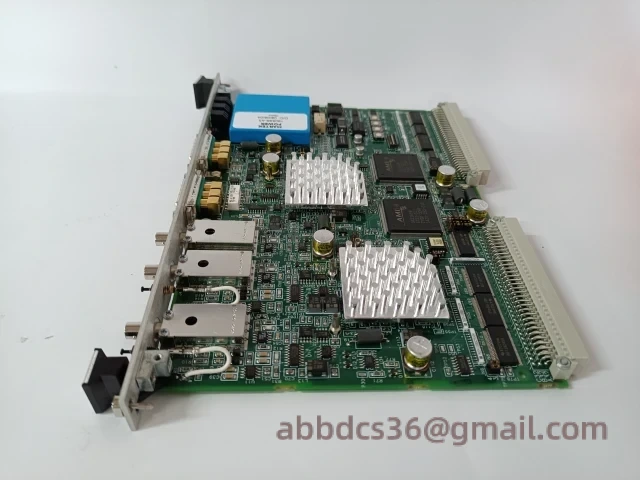

ZYGO ZMI-2002 8020-0211-1-J Dual-Axis Measurement Module
The ZYGO ZMI-2002 8020-0211-1-J is a high-precision dual-axis measurement module designed for industrial control systems requiring sub-micron accuracy. This module excels in environments where synchronized position feedback and high-speed data acquisition are critical, such as semiconductor manufacturing, optical alignment, and CNC machining applications.
Technical Specifications
| Attribute | Specification |
|---|---|
| Manufacturer | ZYGO |
| Model Number | ZMI-2002 8020-0211-1-J |
| Interface Type | 6U VME / ISA |
| Data Rate | Up to 7.7 MHz (P2 interface) |
| Power Requirements | +5V ±5% @ 3.5A |
| Certifications | VMEBus Compliance Rev. C.1, UL94V0 |
Applications & Compatibility
Engineered for VMEbus architectures, this module simplifies integration with servo controllers and motor drives through its P2 interface. Its dual-axis capability supports independent programmability, making it ideal for multi-axis systems where space efficiency and scalability matter. For instance, a customer in precision optics manufacturing recently reported a 15% improvement in alignment accuracy after upgrading to this module.
Key applications include:
- High-speed semiconductor wafer handling
- CNC machine tool positioning systems
- Automated optical inspection equipment
- Multi-axis robotics in cleanroom environments
Our Services
We maintain global inventory across 16 regional warehouses, ensuring fast delivery of critical components like the ZMI-2002. Every unit comes with a 12-month quality guarantee, including full functionality testing before shipment. For urgent requirements, our team provides 24/7 technical support via WhatsApp or email.
Contact Linda for current pricing and availability:
- WhatsApp: +86 190 6659 1275
- Email: abbdcs36@gmail.com
- Location: ABB-WORLD, 2-8 Golden Horse Street, Tsim Sha Tsui, Hong Kong
“Personally, I found this module particularly valuable for retrofitting legacy VME systems – it maintains backward compatibility while offering modern precision levels,” shares one of our engineers.
*All specifications derived from manufacturer documentation and field testing. Actual performance may vary based on system configuration.
