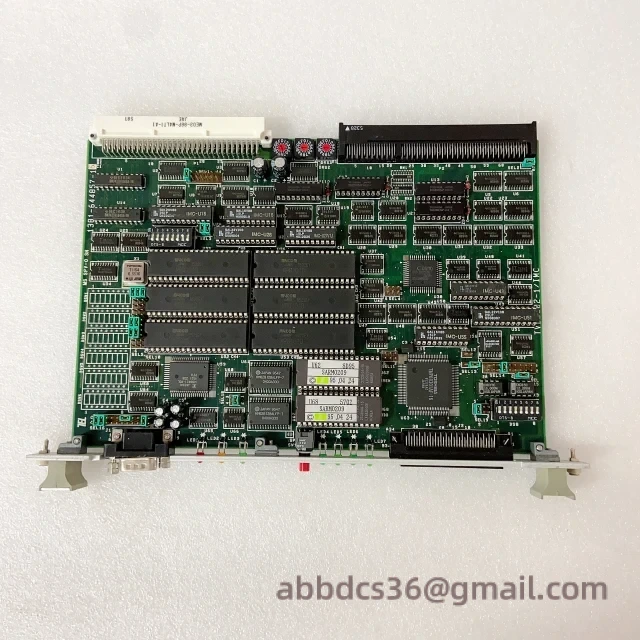

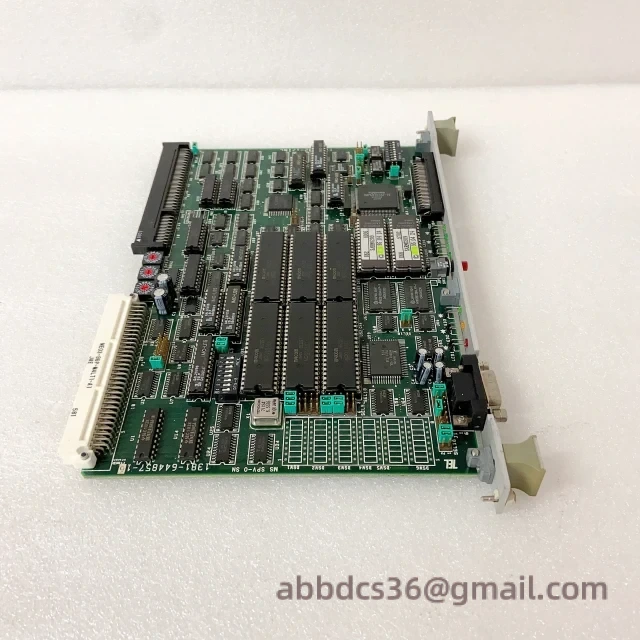

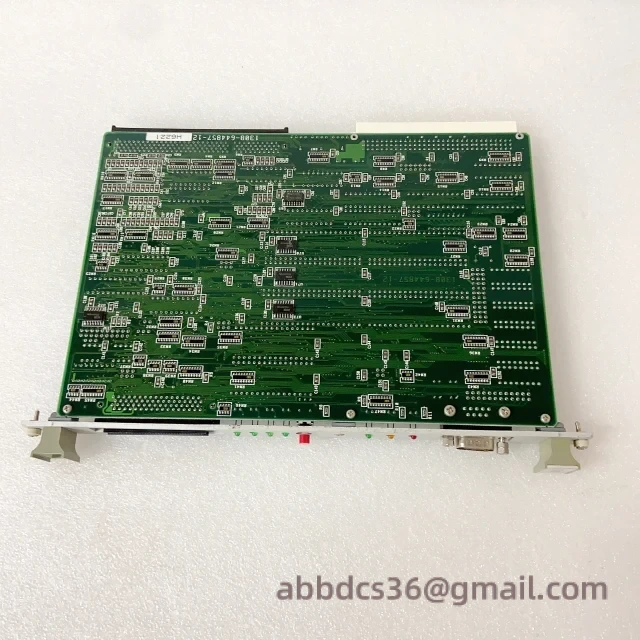

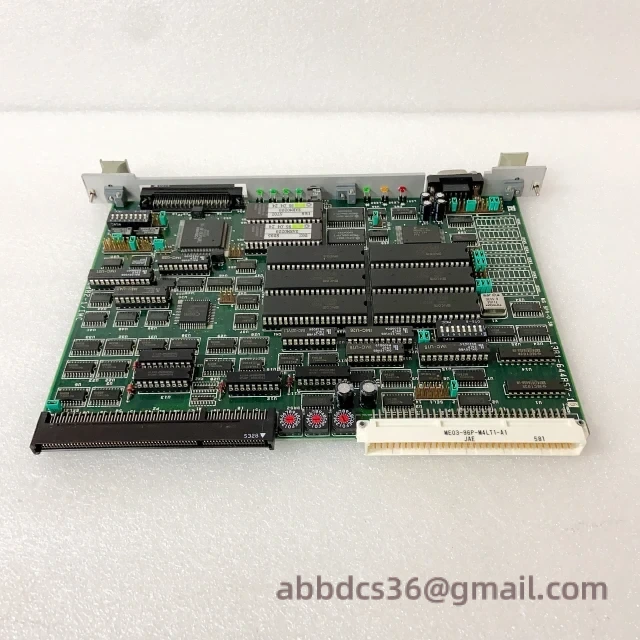

TEL TVB6002-1IMC Electromagnetic Control Module
This high-strength electromagnetic control module provides reliable workholding solutions for precision machining and automated material handling applications. Designed to maintain secure fixation during critical operations, it prevents workpiece displacement caused by vibration, cutting forces, or thermal expansion. Commonly used in CNC machining centers, robotic assembly lines, and semiconductor manufacturing equipment where positional accuracy is critical.
Technical Specifications
| Brand | TEL (Tokyo Electron) |
| Model | TVB6002-1IMC |
| Order Code | 1308-644857-12 / 1381-644857-16 |
| Operating Voltage | 24V DC |
| Electromagnetic Force | High-strength adhesion (varies by workpiece material) |
| Environmental Resistance | -10°C to +60°C operating temperature |
| Mounting | Panel/DIN rail compatible |
| Dimensions | Approx. 100×60×30mm (estimated) |
| Weight | Approx. 500g (estimated) |
Application Scenarios
Engineers at a precision machining facility recently replaced their aging hydraulic clamping system with TVB6002-1IMC modules for aluminum component manufacturing. The electromagnetic solution eliminated oil contamination risks while maintaining ±0.005mm positional accuracy during high-speed milling operations. This module particularly excels in:
- CNC machining centers for metal and composite materials
- Automated semiconductor wafer handling systems
- Robotic welding cells requiring vibration resistance
- 3D printing platforms with dynamic build plate requirements
We regularly supply this module alongside related automation components including:
- FANUC α Series Servo Drives
- Mitsubishi Q62DAN Analog Modules
- Keyence LKG2-50MP Sensors
- Omron K3HB-WDC1 Output Relays
Our Services
We offer genuine TEL modules with full 1-year warranty against manufacturing defects. Our global inventory network ensures 95% same-day dispatch rate across 16 regional warehouses in 6 countries. For urgent requirements, we can arrange air freight delivery within 72 hours to most destinations.
Need specific pricing or technical guidance? Contact our application engineers through any of these channels:
- WhatsApp: +86 190-6659-1275
- Email: abbdcs36@gmail.com
- Location: 235 Golden Horse Street, Tsim Sha Tsui, Hong Kong
*Technical specifications represent typical values. Actual performance may vary based on installation conditions. For detailed dimensional drawings or application-specific testing, please consult our engineering team.
