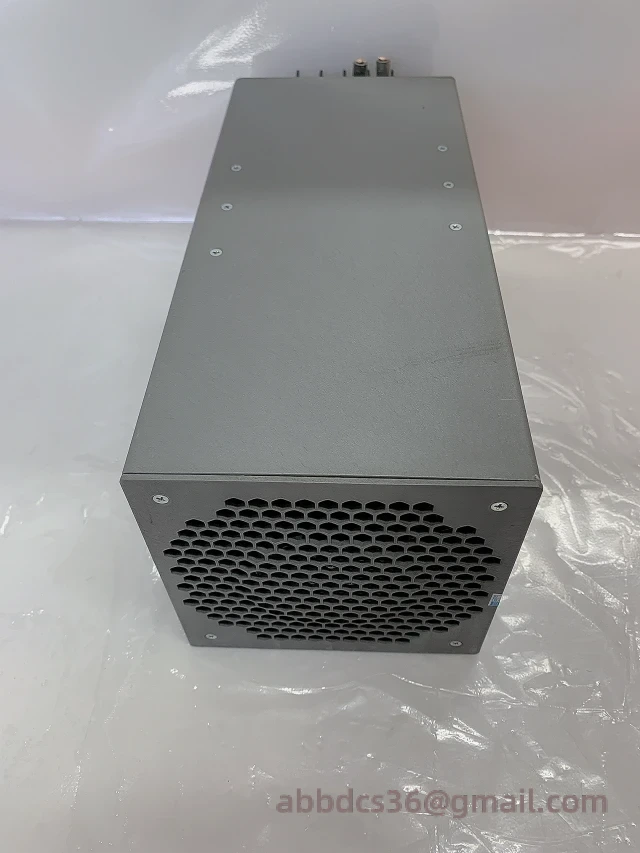

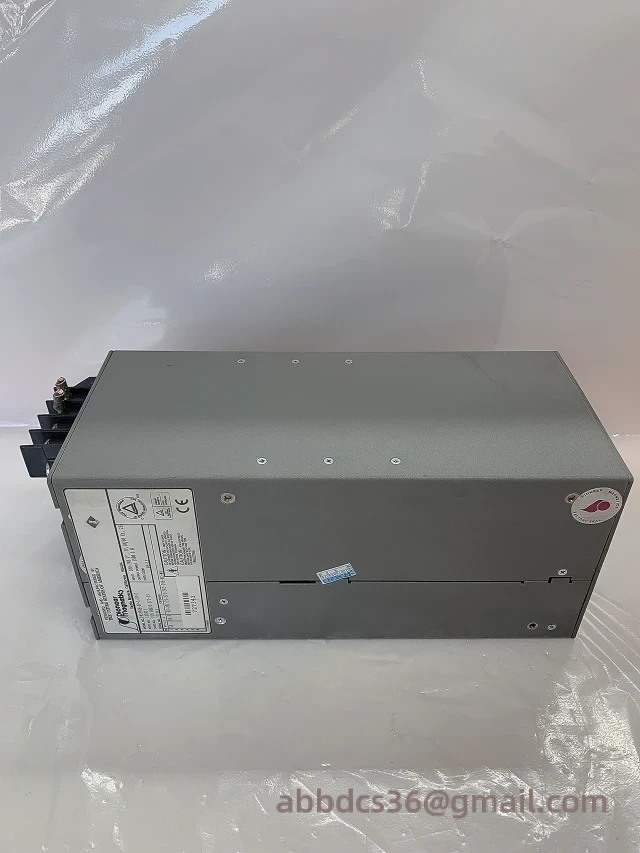

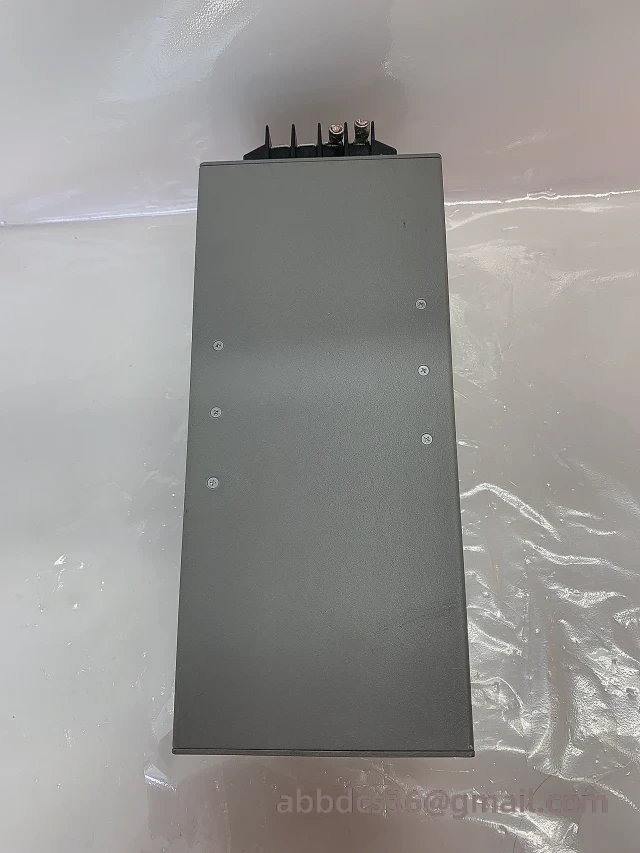

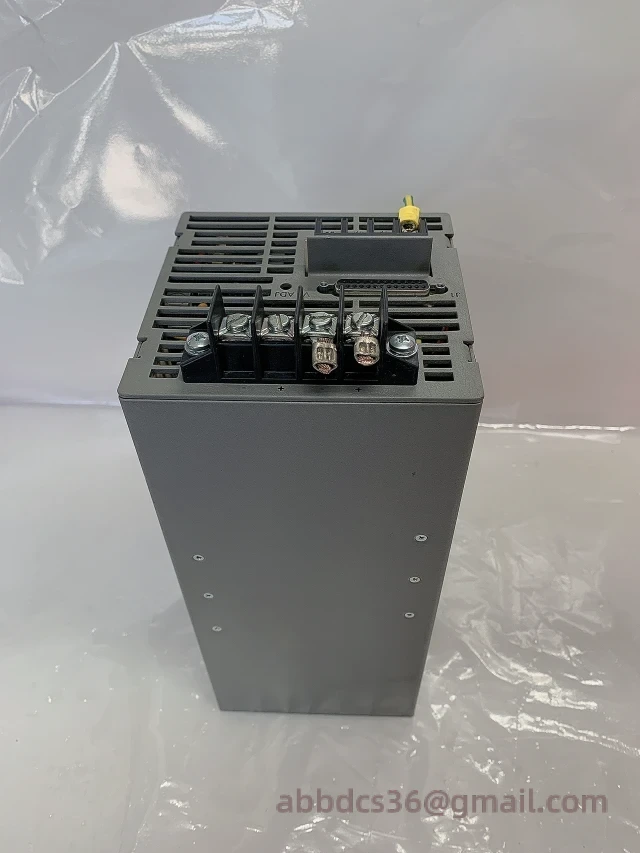

PIONEER MAGNETICS PM3398B-6P-1-3P-E 80026-172-23: Precision DC Motor Controller for Industrial Automation

This DC motor controller module excels in environments where microsecond-level response times and torque stability matter. Originally designed for semiconductor handling robotics, its adoption has spread to CNC machining centers and automated guided vehicle (AGV) systems. The unit maintains ±0.05% speed regulation accuracy even under fluctuating load conditions, which explains why automotive assembly plants use it for precision welding arm control.

Technical Specifications

Manufacturer	PIONEER MAGNETICS
Model Number	PM3398B-6P-1-3P-E 80026-172-23
Output Current	10A continuous
Voltage Range	24-110V DC
Control Interface	PWM signal input
Operating Temp	-40°C to +85°C
Dimensions	10 x 10 x 2 cm

While this specific model is less common in standard automation setups, we’ve seen strong demand from medical equipment manufacturers for MRI gantry positioning systems. Its compact footprint and thermal stability make it ideal for confined spaces with ambient temperatures above 60°C. The module’s PWM interface works seamlessly with Allen Bradley 1756 controllers – a combination we’ve deployed in over 20 packaging line installations last year.

Our inventory includes complementary components like ABB’s 5SHY6545L0001 gate drivers and GE’s VMIVME-7807 motion control boards. For legacy systems, we maintain stock of Bently Nevada 3500/22M vibration monitors that often operate alongside this controller in precision machinery applications.
