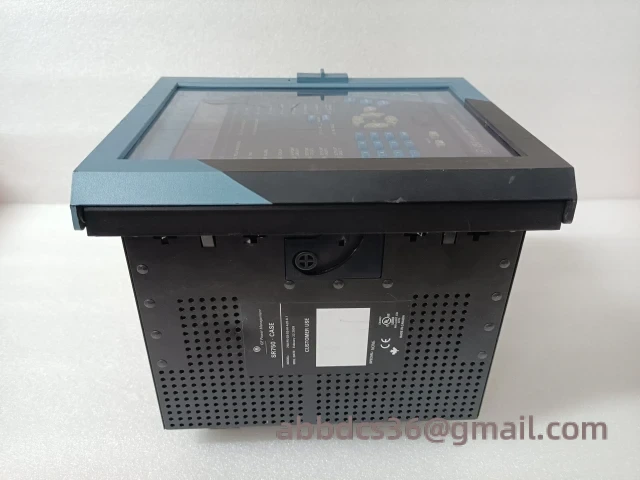

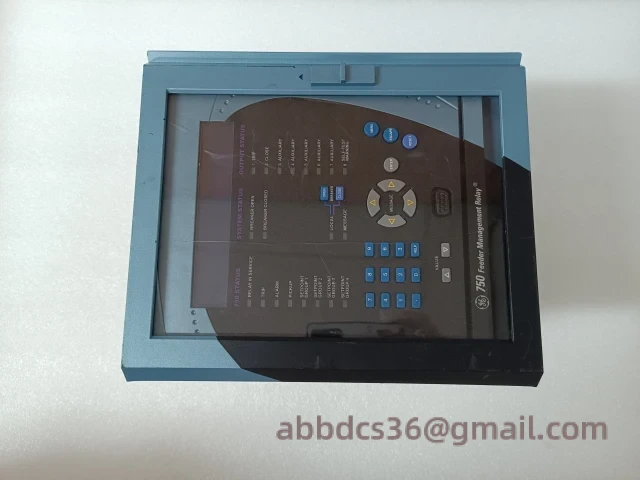

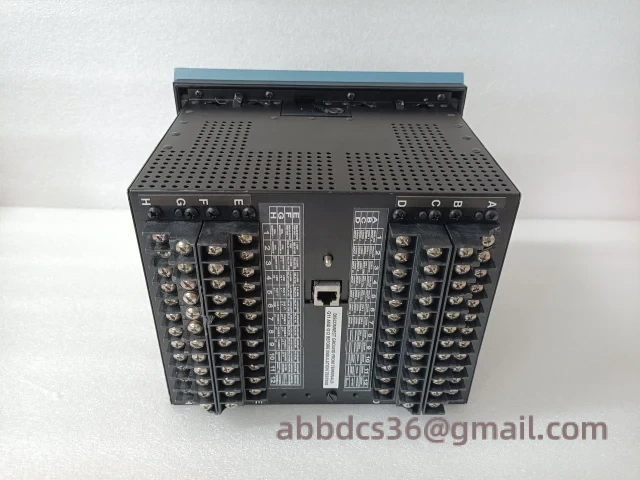

GE SR750-P5-G5-S5-HI-A20-R-T Feeder Protection Relay

The GE SR750-P5-G5-S5-HI-A20-R-T is a high-precision feeder protection relay engineered for critical power distribution systems. Designed to safeguard electrical networks against faults, overloads, and abnormal conditions, this module ensures reliable operation in industrial plants, utility substations, and smart grid infrastructures. Its adaptive protection algorithms and real-time diagnostics minimize downtime while maintaining system integrity under challenging conditions.

Manufacturer	GE Grid Solutions
Model Number	SR750-P5-G5-S5-HI-A20-R-T
Series	Multilin Feeder Protection Relay
Operating Voltage	220 V
Communication	Modbus RTU, DNP 3.0
Mounting	19-inch panel mountable

Key Technical Features

• 8 x 4-20 mA analog outputs for process control integration
• Waveform capture: 4 current channels / 3 voltage channels
• Adjustable overvoltage pickup (0-1.25 × VT in 0.01 steps)
• 300 V insulation voltage rating
• 25-60 Hz frequency range with ±0.5% accuracy
• 14 logic inputs and 8 output relays for comprehensive monitoring

Application Scenarios

This relay excels in environments where power system reliability is critical. A recent customer in the oil & gas sector deployed multiple units across their offshore platforms, reporting a 40% reduction in fault diagnosis time thanks to the module’s waveform capture capabilities. Common applications include:

• Substation feeder protection
• Industrial power distribution systems
• Smart grid implementations
• Renewable energy integration points

We frequently supply this model alongside other GE protection relays like the SR469-P5-HI-A20 and IS230SRTDH2A, often as part of complete system upgrades.

Our Service Commitment

With 18+ years of experience in industrial automation parts distribution, we maintain global inventory across 16 regional warehouses. Every SR750-P5-G5-S5-HI-A20-R-T comes with our standard 1-year quality guarantee – longer than industry norms. For urgent requirements, we can typically dispatch from our Hong Kong warehouse within 24 hours.
