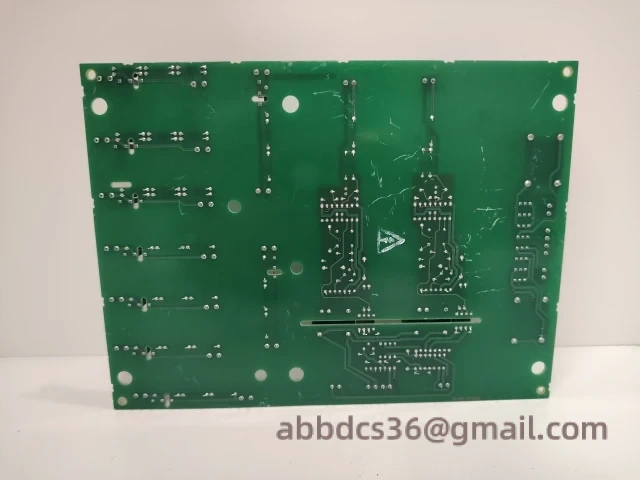

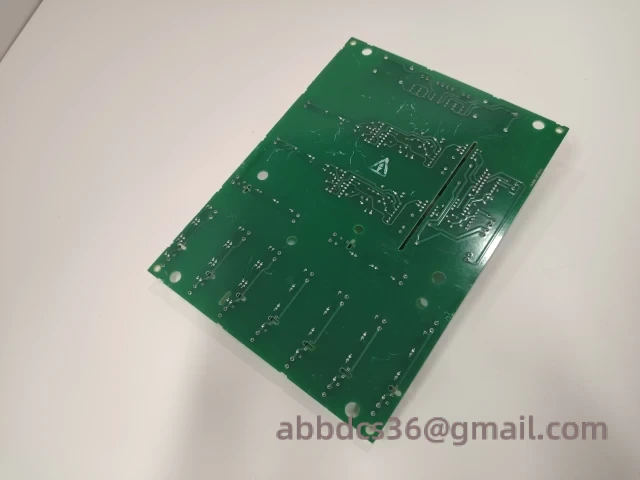

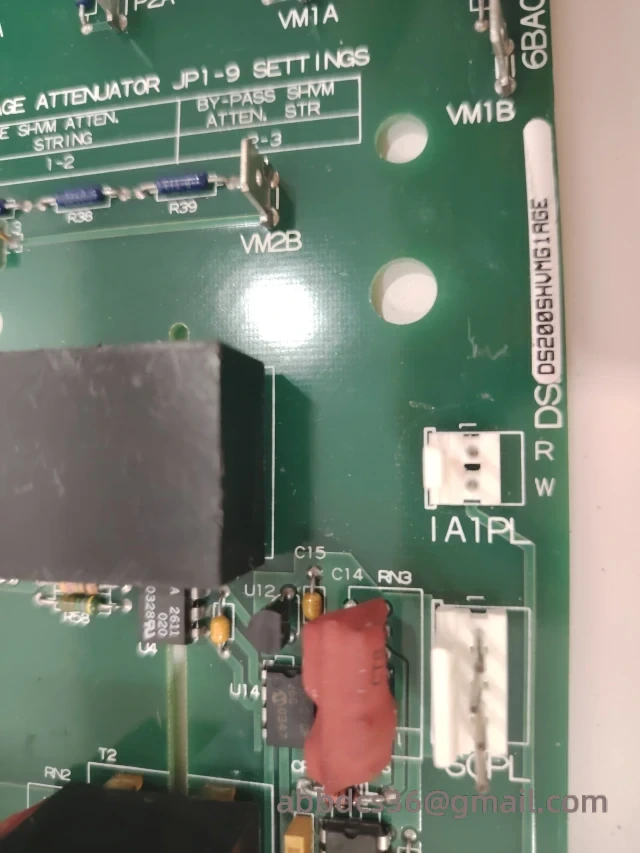

GE DS200SHVMG1AGE SCR High Voltage M-Frame Interface Board

Engineered for precision control in demanding industrial environments, the DS200SHVMG1AGE SCR High Voltage M-Frame Interface Board serves as a critical link between GE Mark V control systems and high-voltage industrial equipment. This board specializes in managing heavy-duty motor controls and process automation systems where reliability under high-stress conditions is non-negotiable.

Technical Specifications

Attribute	Specification
Manufacturer	General Electric
Series	GE Mark V DS200 Series
Form Factor	M-Frame Module
Voltage Range	1000-1400V DC
Interface Type	SCR Thyristor Control
Mounting	Standard DIN Rail
Operating Temp	-20°C to +70°C
Certifications	CE, UL, CSA

Real-World Applications

Commonly deployed in energy-intensive sectors, this board excels at controlling large motor drives in power generation facilities and managing high-voltage processes in steel manufacturing plants. Its M-Frame architecture allows seamless integration with GE Mark V systems, particularly in legacy installations requiring backward compatibility.

Typical applications include:

• Pump station automation systems
• Rolling mill motor control
• Compressor station management
• High-voltage HVAC systems

Our inventory includes complementary GE components like VMIVME-7807 interface modules and IS220PPDAH1B power supplies, ensuring complete system support for Mark V installations.

Our Commitment

With 16 regional warehouses across six countries, we guarantee 98% stock availability on GE automation components. Every DS200SHVMG1AGE comes with our standard 1-year warranty covering both parts and performance. For urgent requirements, our technical team provides free diagnostics and compatibility checks before shipment.

Need immediate assistance? Contact Linda via WhatsApp or email abbdcs36@gmail.com. Our Hong Kong headquarters (ABB-WORLD, 235 Golden Horse Street) offers same-day dispatch for in-stock items.
