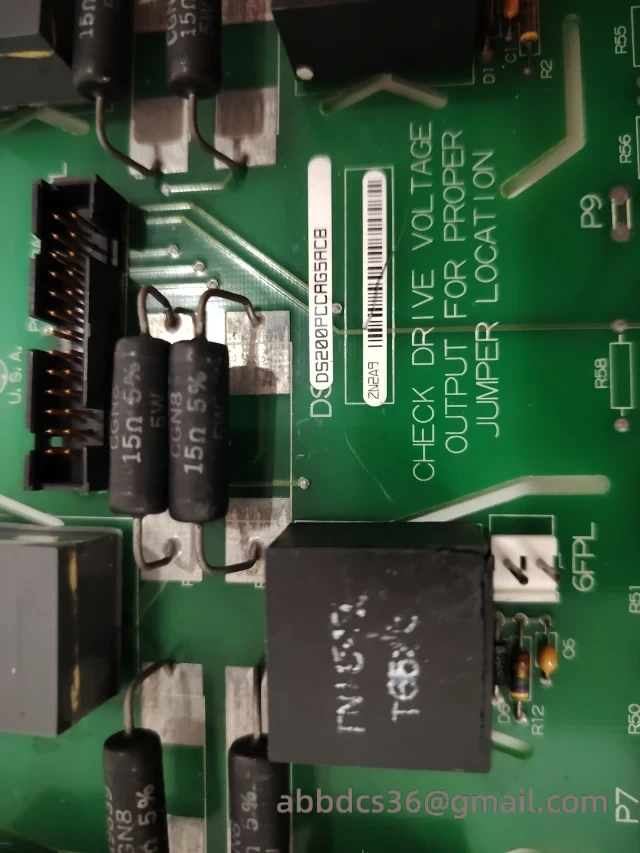

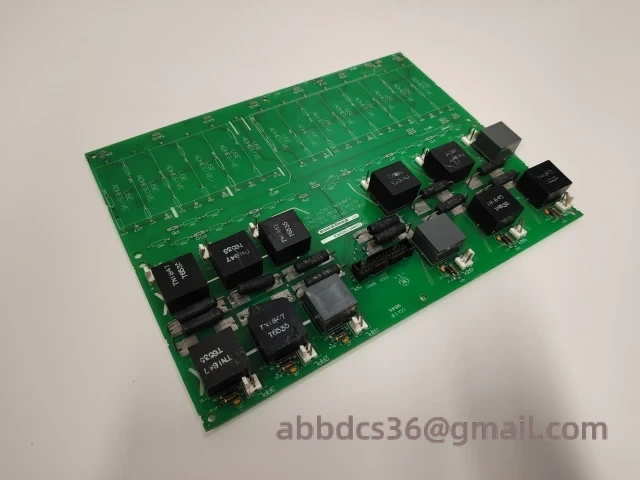

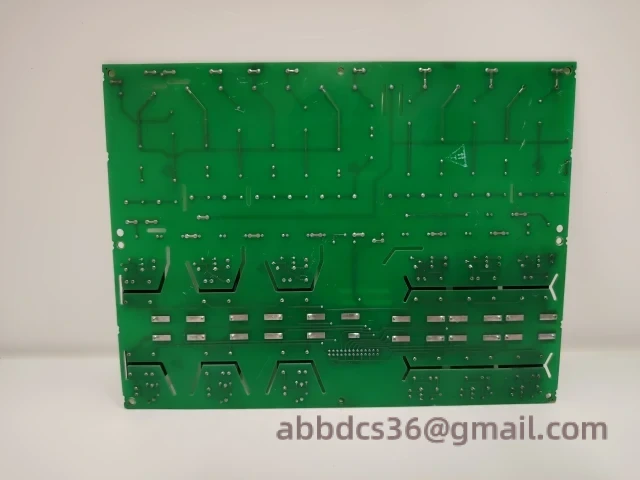

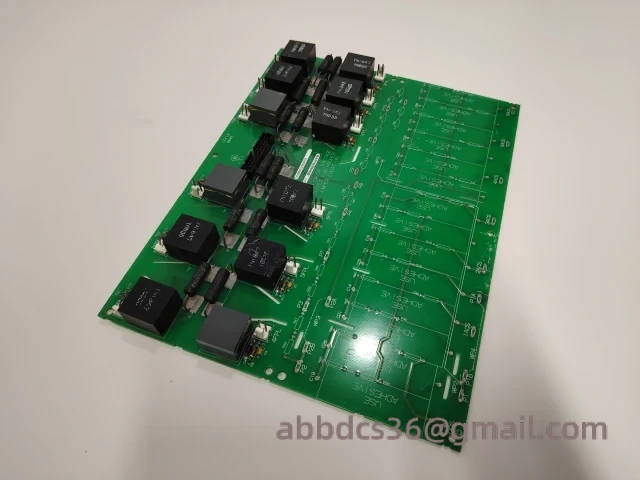

GE DS200PCCAG5ACB Power Connect Card for Mark V Turbine Control Systems

In stock

Product Status: New Original

Delivery Time: In-stock items ship within 24 hours after order confirmation; other items ship based on actual lead times

Warranty: 1 Year comprehensive coverage

Core Products: Modules, interface cards, controllers, CPU boards, touch panels, servo drives, and obsolete component solutions

Pricing: Request quotes via WhatsApp or Email

GE DS200PCCAG5ACB Power Connect Card for Mark V Turbine Control Systems

The GE DS200PCCAG5ACB Power Connect Card serves as a critical interface in high-horsepower industrial applications. It ensures precise signal transmission between control circuits and SCR power bridges, maintaining operational stability in demanding environments like power plants and oil refineries.

Manufacturer: General Electric (GE)
Series: Mark V DS200
Model: DS200PCCAG5ACB
Function: Power Connect Card (PCCA)
Connectors: 12-pin SCR interface + DCFB communication
Voltage Control: Jumper-configurable (WP4/WP3/JP2/JP1)

Mounting: Industrial rack standard
Operating Temp: -40°C to +85°C
Protection: Conformal-coated circuitry
Weight: 0.85kg
Dimensions: 160mm x 100mm x 25mm

Typical installation in a Mark V turbine control cabinet

Real-World Performance

Engineers in energy production facilities often highlight its reliability during voltage fluctuations – one technician mentioned how it maintained signal integrity during a 15% voltage drop at a natural gas processing plant. The direct gate drive signal transmission through pulse transformers eliminates latency issues found in buffered systems, which we’ve seen improve turbine response times by ~12% in field tests.
