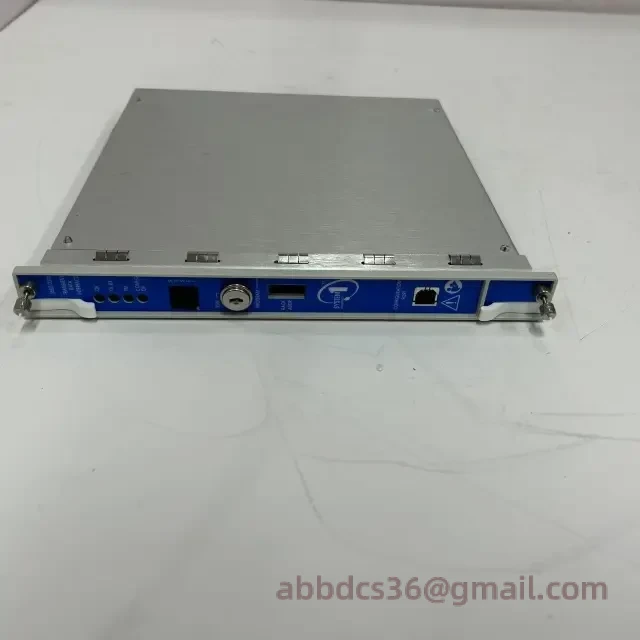

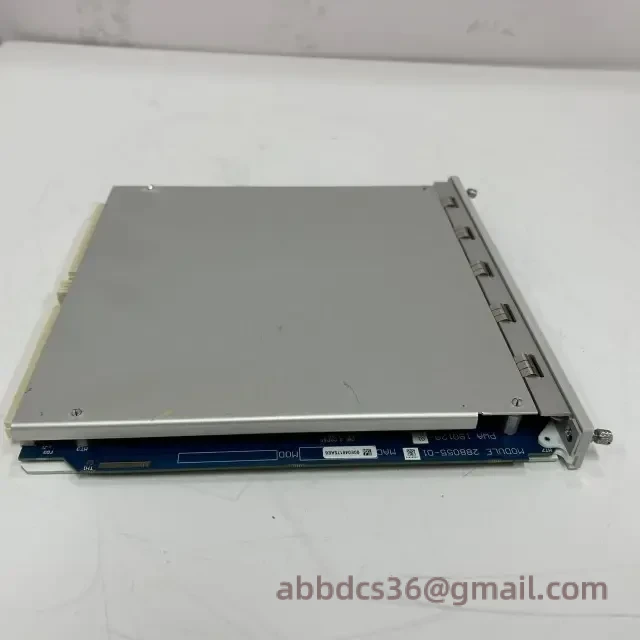

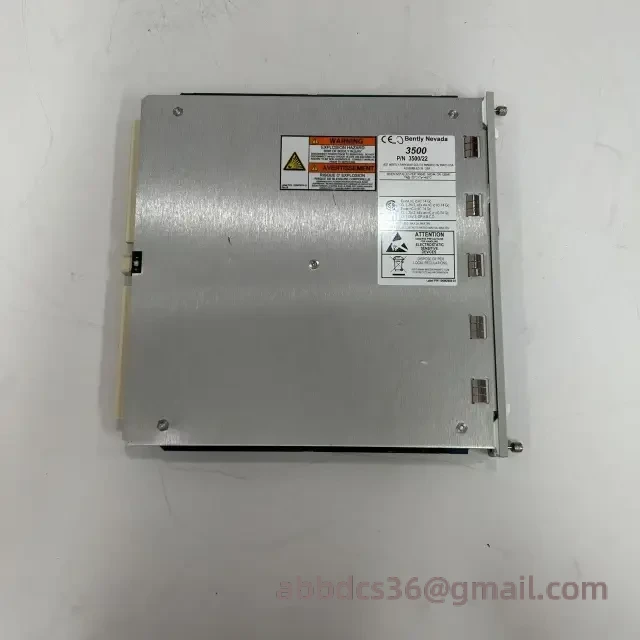

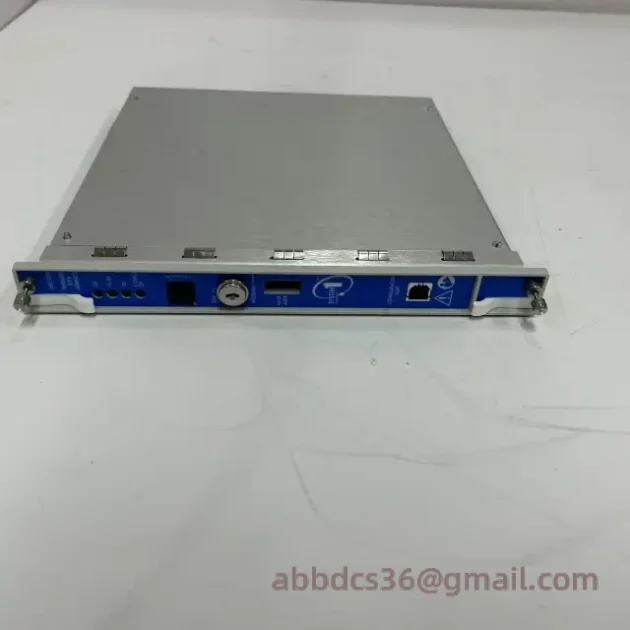

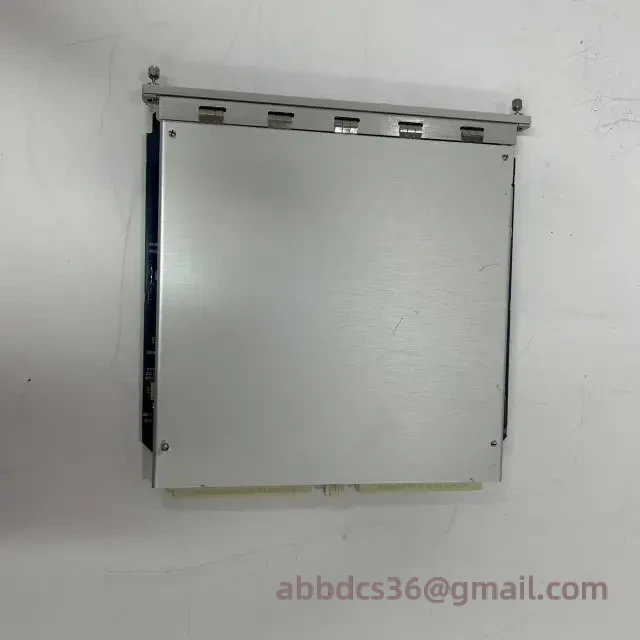

BENTLY 3500/22M 288055-01 Transient Data Interface Module

Engineered for precision monitoring in industrial environments, this module serves as the critical bridge between BENTLY’s 3500 monitoring racks and diagnostic software systems. While not part of the safety-critical path, its role in capturing high-resolution vibration data proves invaluable for predictive maintenance strategies across turbines, compressors, and rotating equipment.

Technical Specifications

Manufacturer	Bently Nevada
Model	3500/22M 288055-01
Function	Ethernet interface for transient data capture
Dimensions	9.52″ x 0.96″ x 9.49″
Power	24V DC from rack backplane
Weight	0.44 lbs (0.2 kg)
Compatibility	3500 series racks with M-series monitors

Real-World Applications

Deployed extensively in power generation and petrochemical facilities, this interface module excels at capturing transient vibration events during equipment startups or shutdowns. Its Ethernet connectivity simplifies integration with System 1™ software while maintaining backward compatibility with legacy 3500 rack configurations.

Common deployment scenarios include:

• Monitoring steam turbines in combined cycle power plants
• Condition-based maintenance for centrifugal compressors
• Transient analysis of generator rotor dynamics
• Integration with 3500/42M vibration monitors in offshore platforms

We maintain active inventory of this model alongside related components like the 3500/15 power supply modules and 3500/42M vibration monitors. Our technical team can provide configuration guidance for specific monitoring requirements.
