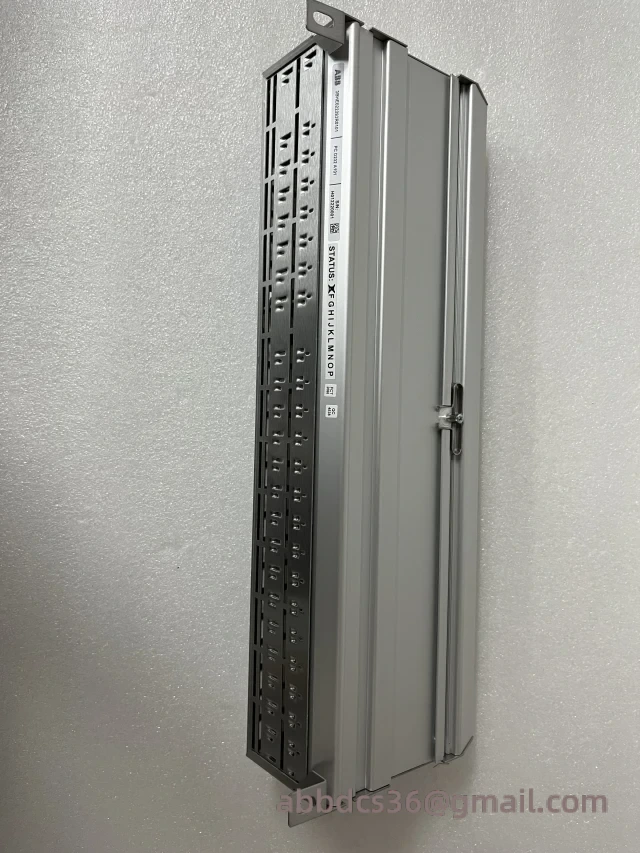

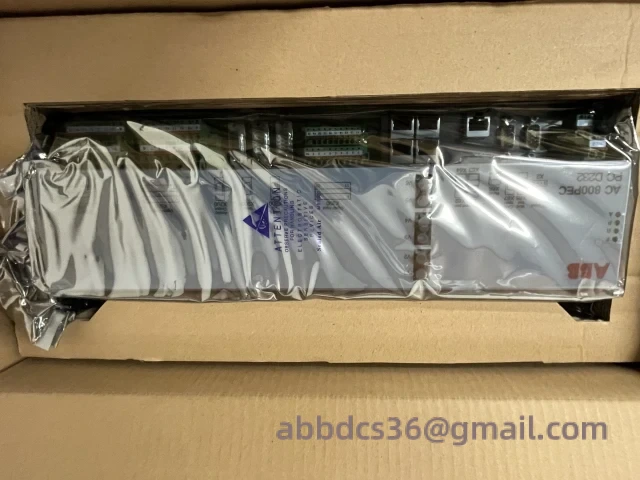

ABB PCD232A101 3BHE022293R0101 – Advanced Industrial Control Module

ABB PCD232A101 3BHE022293R0101 – Precision Industrial Control Module

Engineered for demanding automation environments, this ABB control module delivers rock-solid performance in critical industrial applications. We’ve seen it deployed in packaging lines, chemical processing plants, and CNC machining centers where millisecond-level response times matter. Its modular design allows seamless integration with existing AC500 PLC systems, making it a go-to solution for system upgrades without complete overhauls.

Specification	Details
Manufacturer	ABB
Model Number	PCD232A101 (3BHE022293R0101)
Voltage Rating	220 V AC
Output Frequency	30 kHz
Physical Size	Standard 19″ rack mount
Weight	Approx. 1.2 kg

Real-World Applications

This module excels in applications requiring precise motor control and high-speed data acquisition. One of our customers in Singapore’s semiconductor industry reported achieving 0.01% signal accuracy improvement after upgrading their wafer handling systems with this module. Common deployment scenarios include:

• High-speed conveyor belt synchronization in food processing
• Temperature control systems for plastics injection molding
• Positioning control in automated warehouse robotics

For system integrators, we maintain stock of complementary modules including 3BHE008708R0101 and 3BHE022292R0101, ensuring complete solution availability for AC500 system expansions.

Our Support Commitment

While the PCD232A101 itself comes with ABB’s standard warranty, our company provides an additional 12-month performance guarantee covering operational defects. Our technical team has successfully supported installations in 14 countries – last month alone we assisted a pharmaceutical client in Brazil with configuration optimization for GMP compliance.

Pricing & Availability:
We offer volume discounts for system integrators. For current pricing and lead times, contact Linda via WhatsApp or email abbdcs36@gmail.com. Stock status updates available within 2 hours during business days.
