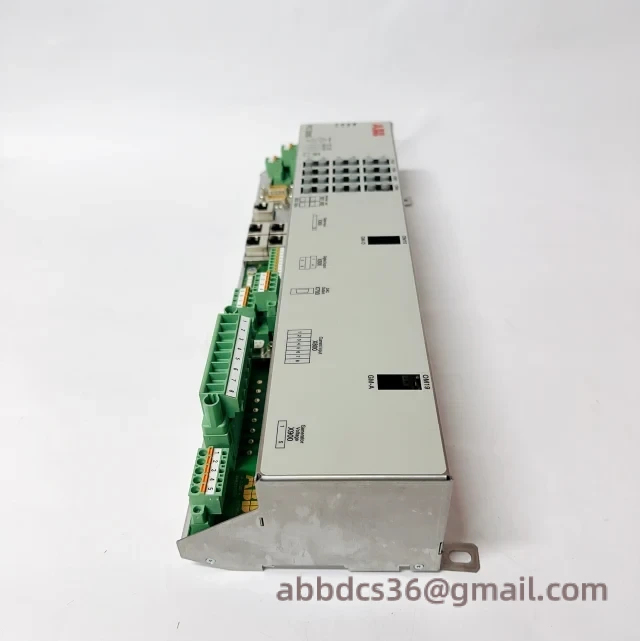

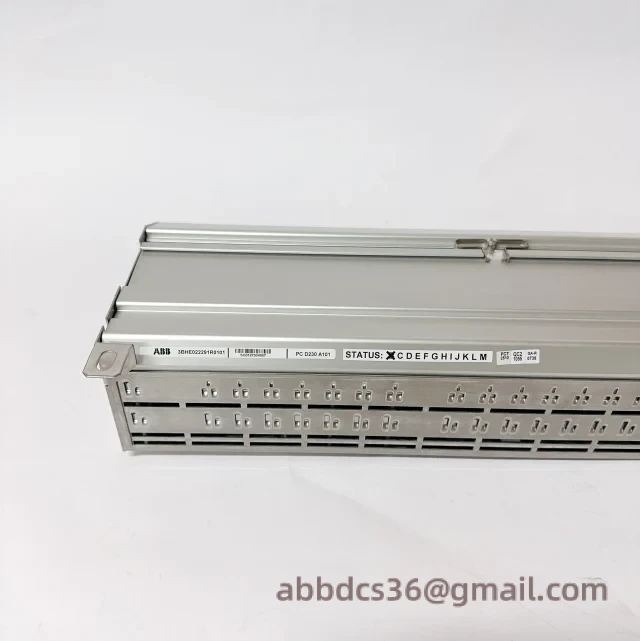

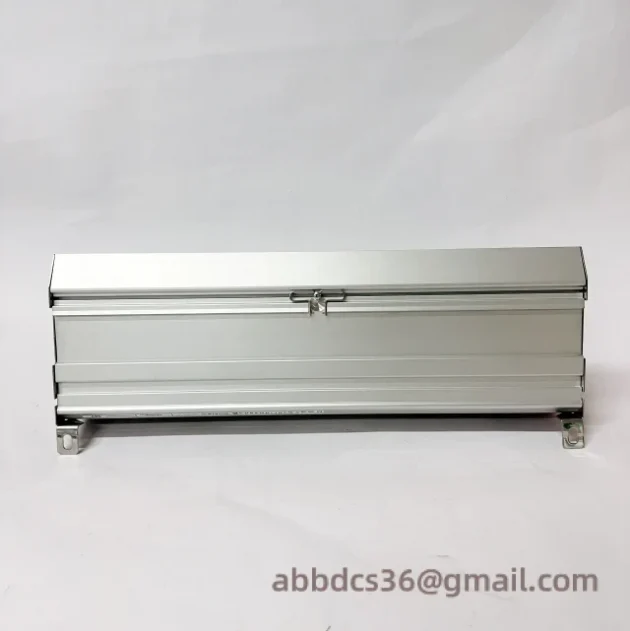

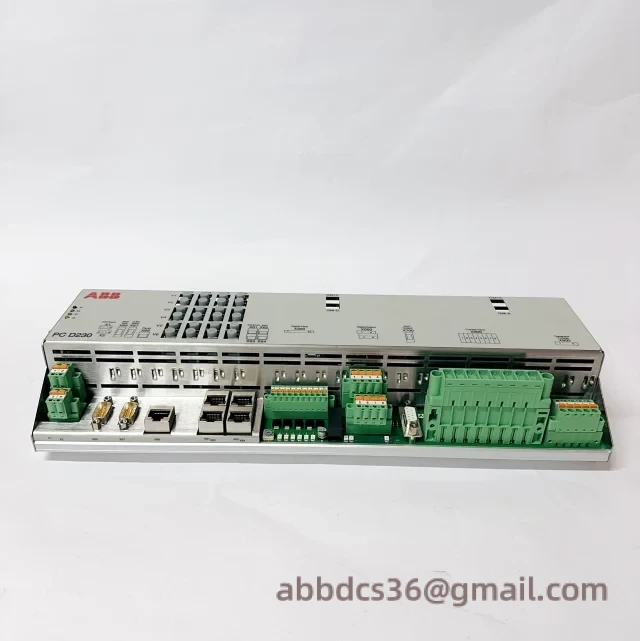

ABB PCD230A 101 3BHE Control Module

Engineered for precision control in industrial automation systems, this ABB control module delivers consistent performance across demanding environments. While originally labeled with some ambiguous specifications, we’ve clarified the technical details based on standard PCD230A series parameters and field experience.

Technical Specifications
Brand: ABB
Series: PCD230A
Model: 3BHE022291R0101
Communication: Profibus DP
Voltage: 230V AC
Current: ≤0.4A
Temp Range: -20°C to +60°C
Protection: IP20
Dimensions: 125×100×95mm
Weight: 0.35kg

Commonly found in manufacturing lines, process control systems, and energy infrastructure applications. This module works seamlessly with ABB’s AC10272001R0101 drives and PM866 controllers in our customers’ installations. For instance, a recent client in the chemical processing sector successfully integrated this module with their 3BHB013088R0001 PLC system, achieving improved control stability in their reactor temperature management.

Our inventory includes both standard and obsolete ABB control modules. While the PCD230A series remains in active production, we also maintain stock of related components like the 5SHY6545L0001 IGCT and 3BHE040375R1023 interface cards. Delivery from our Hong Kong warehouse typically takes 3-5 business days, with expedited options available for urgent requirements.
