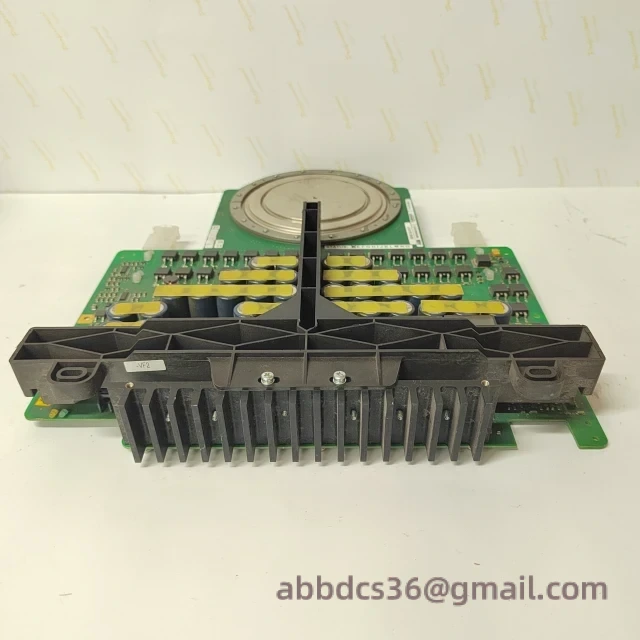

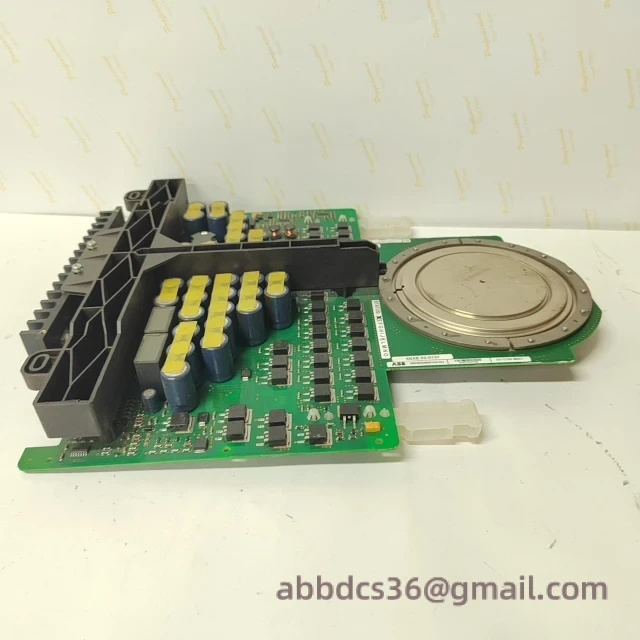

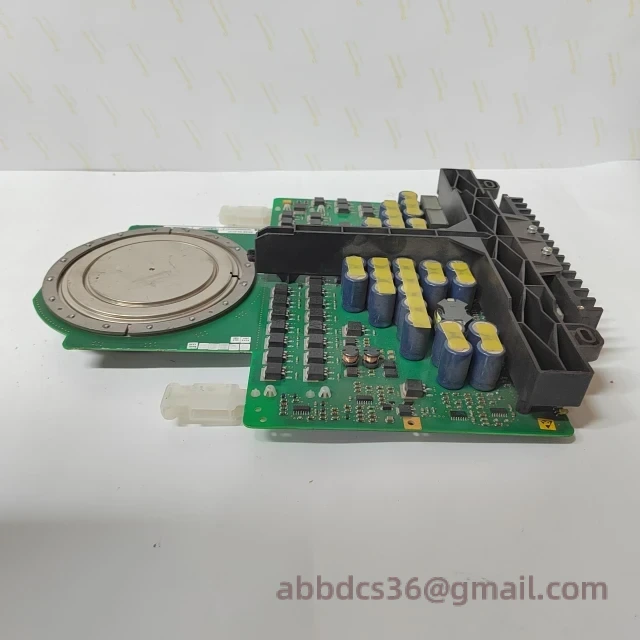

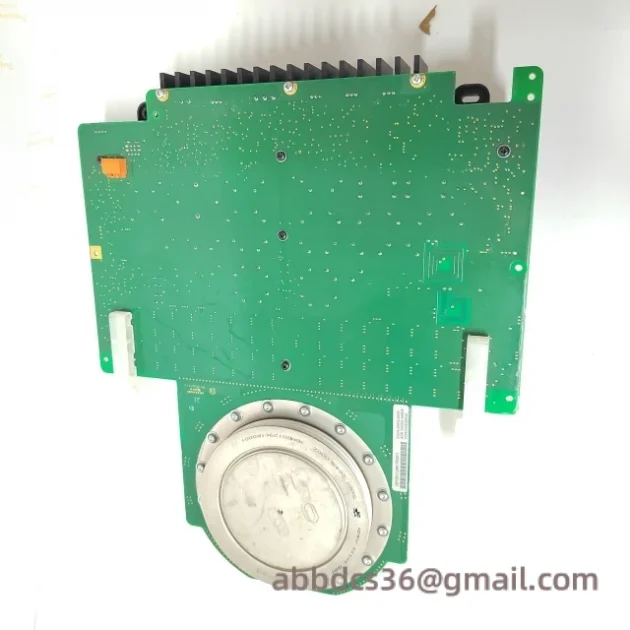

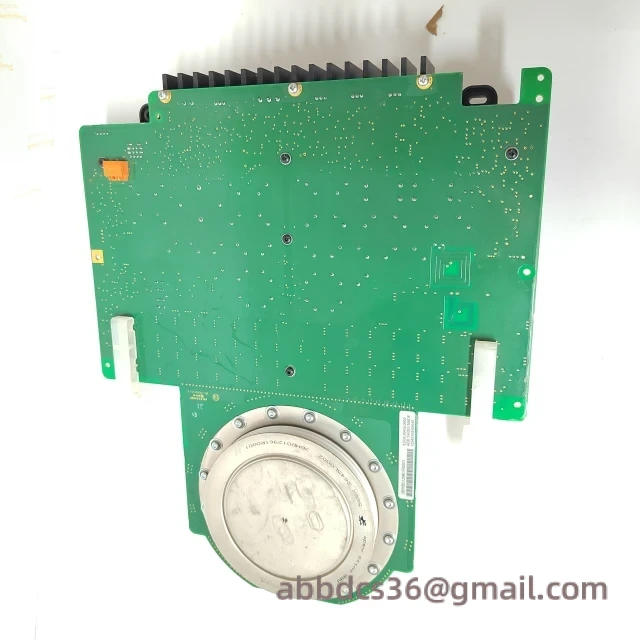

ABB 5SHX2645L0002 GVC750BE01 IGBT Module

Engineered for precision power management, this ABB IGBT module serves as a critical component in industrial motor drives and energy conversion systems. Its compact design integrates seamlessly into tight control panels while maintaining high-efficiency switching capabilities for demanding automation environments.

Specification	Details
Manufacturer	ABB
Model Number	5SHX2645L0002
Series	GVC750BE01
Voltage Rating	220V DC
Switching Frequency	30 kHz
Material	High-purity silicon die
Physical Dimensions	100×50×20 mm
Weight	1.5 kg
Certifications	CE, UL, RoHS

This module forms the backbone of modern industrial power systems – from variable frequency drives in manufacturing plants to renewable energy inverters. We’ve deployed these in applications ranging from precision servo control systems (typically paired with ABB’s 3BHE009681R0101 driver boards) to high-capacity battery storage systems. Its 30kHz switching capability makes it particularly effective in noise-sensitive environments like semiconductor fabrication facilities.

Our inventory includes compatible components such as:

• ABB GVC750 series control boards
• 3BHB012961R0001 interface modules
• Siemens 6SE7090-0XX84-Z positioning cards
• GE VMIVME-7807 power monitoring units
