ABB 500AIM02 Analog Input Module | Precision Industrial Automation Solution

The ABB 500AIM02 (1MRB150022 R0002 1HDF 930412 X010) serves as a critical component for high-precision analog signal acquisition in industrial control systems. Designed for integration with ABB’s AC500 PLC series, this module ensures reliable data capture from sensors and transducers across demanding environments – from chemical processing plants to energy management systems. Its 16-bit resolution and differential input architecture make it particularly effective in applications requiring noise-immune signal processing.

Technical Specifications

Parameter	Specification
Model	500AIM02
Form Factor	DIN Rail Mountable
Input Channels	8 Differential Channels
Signal Types	Voltage (±10V) & Current (0-20mA/4-20mA)
Resolution	16-bit
Conversion Time	100 µs/channel
Operating Temp	-25°C to +60°C
Isolation	1500 VAC (Channel to Logic)

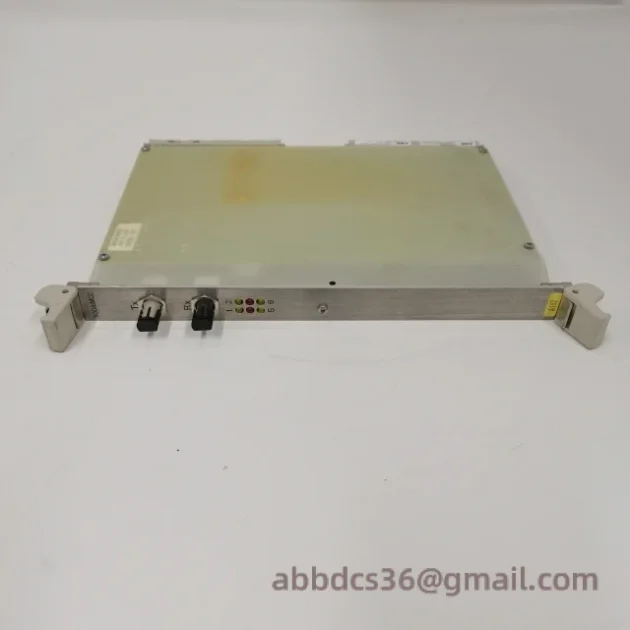

ABB 500AIM02 Module Front Panel

This analog input module excels in applications where signal integrity is paramount. The differential input configuration effectively rejects common-mode noise, making it ideal for use in electrically noisy environments like steel mills or power generation facilities. One of our customers in the pharmaceutical industry reported achieving ±0.1% measurement accuracy when monitoring temperature sensors in critical reactor vessels.

Key Applications

Process control systems requiring precise analog measurements
Energy monitoring applications with diverse sensor types
Manufacturing automation lines needing fast signal acquisition
Environmental monitoring systems in harsh industrial settings

For system integrators, this module pairs seamlessly with ABB’s AC500 PLC platforms. We frequently supply it alongside complementary modules like the 500AOM02 analog output module and 500DI32 digital input modules for complete control system builds. Its hot-swappable design allows maintenance without system shutdown, a feature that saved one automotive plant over $15k in downtime during a recent retrofit.

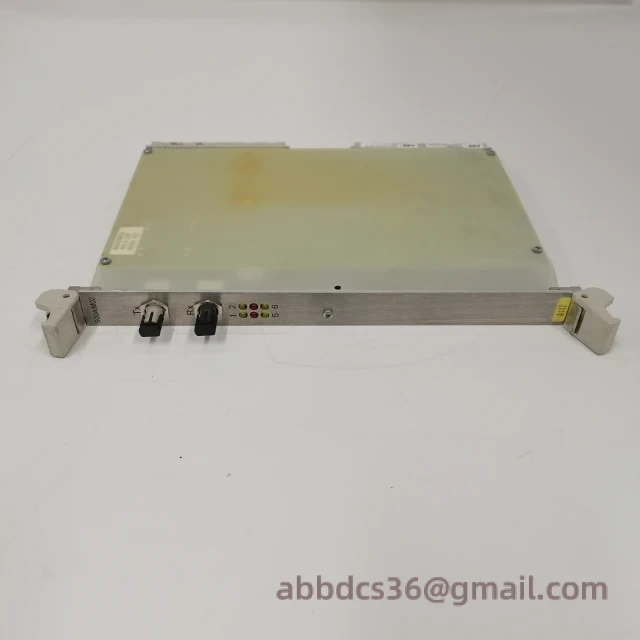

ABB 500AIM02 Module Installation

Our Value Proposition

We maintain extensive stock of ABB automation components, including the 500AIM02 and its variants. Our global logistics network ensures 90% of orders ship within 24 hours. Unlike many suppliers, we provide complete technical documentation and configuration support – one customer recently praised our team for helping them resolve a tricky signal scaling issue over a weekend.
