EATON PL9-C2-2 Miniature Circuit Breaker
Product manual:
EATON PL9-C2-2 miniature circuit breaker is a modular circuit breaker produced by Eaton Corporation for use in low-voltage distribution systems,
Has high reliability and good overload and short-circuit protection performance. The following is an overview of its products and an introduction to its application areas:
1、 Basic Product Information
Model: PL9-C2-2
Type: Miniature Circuit Breaker (MCB)
Number of poles: 2 poles (bipolar)
Rated current: 2 A
Release curve: C-type (C Curve, suitable for conventional resistive and mild inductive loads)
Rated voltage: generally 230/400V AC (depending on regional standards)
Breaking capacity: usually 6kA (to be confirmed with specific series)
Installation method: DIN rail installation
Compliant with standard: IEC/EN 60898-1
2、 Product Features
Provide bipolar isolation protection, which can be used for simultaneous disconnection of dual line systems
Quick disconnect mechanism, which can quickly cut off the power supply in case of overcurrent or short circuit
Compact size, suitable for standard electrical distribution boxes
C-type trip characteristic, suitable for electric motors, small transformers, and lighting loads
High mechanical and electrical lifespan, suitable for frequent operation
3、 Application Fields
Residential and commercial buildings
Used for branch protection of household circuits, such as lighting and socket circuits
Protect ordinary electrical equipment in buildings from overload and short circuit damage
Industrial control system
Circuit protection in small industrial equipment, control cabinets, and distributed systems
Distribution board and electrical control cabinet
As a branch circuit protection component in the control cabinet
Ensure safe isolation of downstream module equipment in the event of electrical failure
Telecommunications and IT room
Provide isolation and protection for power system branch lines to prevent equipment damage
Applied to sub protection circuits in UPS output branches and power distribution units

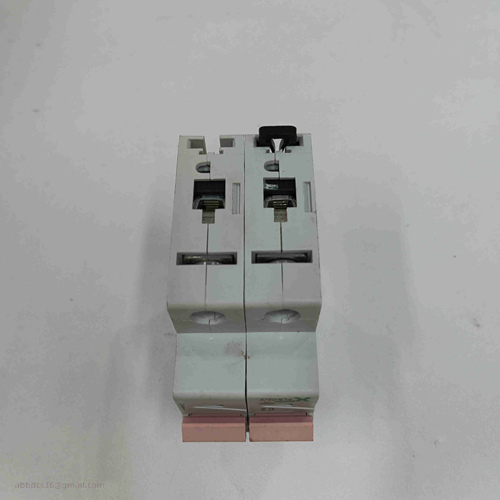

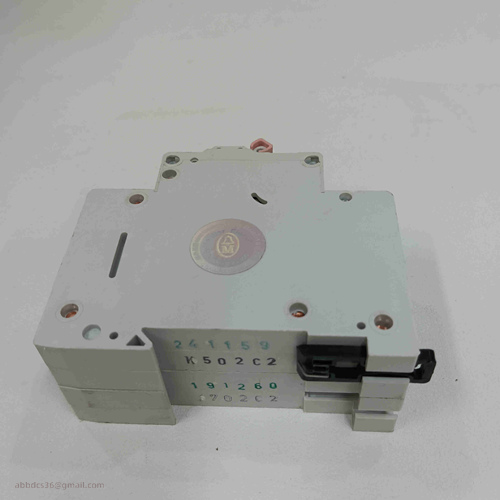

Product details picture:
